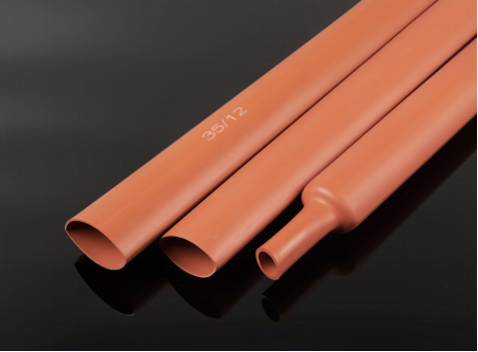

High Insulation Tubing / GHIT
High insulation tubing
Features
◎ High insulation Shrink ratio 3:1
◎ Application up to 36kV
◎ RoHS compliant
Features
◎ High insulation Shrink ratio 3:1
◎ Application up to 36kV
◎ RoHS compliant
Typical technical performances
| Test Items | Test Method | Test Requirements |
| Tensile strength | ASTM D 2671 | 12MPa min. |
| Ultimate elongation | ASTM D 2671 | 200% min. |
| Volume resistivity | IEC 93 | 1014Ω.cm min. |
| Dielectric strength | IEC 60243 | 20kV/mm(1.0mm) min. |
| Water absorption | ISO 62 | 0.5% max. |
Ordering information
| Color | Standard | Brown Red |
| Standard packaging | In 1.2-meter [4-foot] lengths | |
| Ordering description | Specify product name, size and Color (for example, GHIT 35/12 Red) | |
* Other cutting lengths are available on request.
Dimensions
| Size (mm) | As supplied(mm) | After recovered (mm) | Standard length (m) | |
| D*(Min.) | d*(Max.) | w*(Min.) | ||
|
|
||||
| 35/12 | 35 | 12 | 3.0 | 1.0-1.5m |
| 45/14 |
45 |
14 | 3.3 | 1.0-1.5m |
| 52/15 | 52 | 15 | 3.5 | 1.0-1.5m |
| 55/18 | 55 | 18 | 3.5 | 1.0-1.5m |
| 66/20 | 66 | 20 | 4.2 | 1.0-1.5m |
| 75/25 | 75 | 25 | 4.5 | 1.0-1.5m |
| 95/30 | 95 | 30 | 4.5 | 1.0-1.5m |
D* = Inner diameter as supplied
d* = Inner diameter after fully recovered
w* = Wall thickness after fully recovered
