Tape / G-Tape -AWT
Armor-Wrap Tape
Features
◎ Fast and easy to apply, yet hardens to a strong and maintenance-free coating
◎ Suitable for aerial, buried and manhole applications
◎ Ideal for strengthening old cables, splices and auxiliary seals
Features
◎ Fast and easy to apply, yet hardens to a strong and maintenance-free coating
◎ Suitable for aerial, buried and manhole applications
◎ Ideal for strengthening old cables, splices and auxiliary seals
Applications

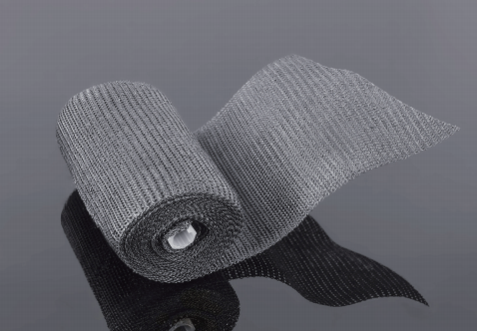

Armor-Wrap is a Flexible fiberglass knit fabric strip, saturated with a curable black urethane resin that starts to cure after adding water. Once wet, the fiber strip becomes tacky and sticks to itself. So it wraps easily around almost any shape or size. It resists moisture, acids, alkalis, ozone, gasoline and high temperatures.
Typical technical performances
| Property | Testing Method | TYPICAL |
| LongitudinalTensile strength | GB/T 1447-1983 | ≥ 12 MPa |
| LatitudinalTensile strength | GB/T 1447-1983 | ≥ 32 MPa |
| Impact strength | GB/T 1043-1983 | ≥ 30 kJ/m2 |
| Peeling strength | GB/T 2791-1995 | ≥ 15 N/25mm |
| Compression Strength | ASTM F 1536-95 | ≥ 300N |
Dimensions
| Part. No | Width/mm | Length/mm | Thickness/mm | Stardard Packing |
| Gtape-SCT | 25 | 50000 | 0.8 | 50 reels/carton |
| Special width and lengths are available upon request | ||||
