Metal Parts / GCM

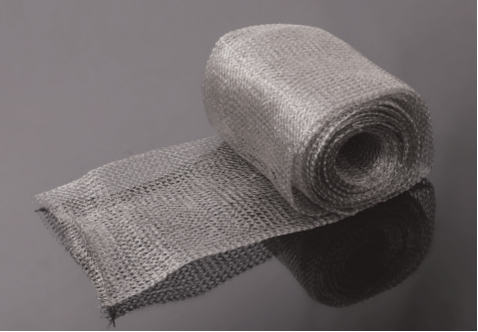

Copper Mesh
Features
◎ GCM is used in conjunction with medium and high voltage ground braids to provide shield continuity when splicing shielded power cables.
◎ It works with GCFS to ensure the correct screen connection across the joint area and make
◎ electrical contact with the outer screen of the joint.
Features
◎ GCM is used in conjunction with medium and high voltage ground braids to provide shield continuity when splicing shielded power cables.
◎ It works with GCFS to ensure the correct screen connection across the joint area and make
◎ electrical contact with the outer screen of the joint.
Dimensions
| Part NO. | Diameter of wire/ mm | Width of Mesh/mm | length/mm |
| GCM-50 | 0.12 | 50 | 5000 |
| GCM-60 | 0.12 | 60 | 5000 |
| GCM-70 | 0.12 | 70 | 5000 |
Special width and length are available up on request.The mesh should be applied with a slight tensile force, with half overlap. Both ends need to be fixed with GCFS.
Ordering information
| Color | Standard | Siliver |
| Ordering description | Specify product type and length (for example, GCM-60-1000mm) |
* Other lengths are available on request.
