Metal Parts / G-WCJB

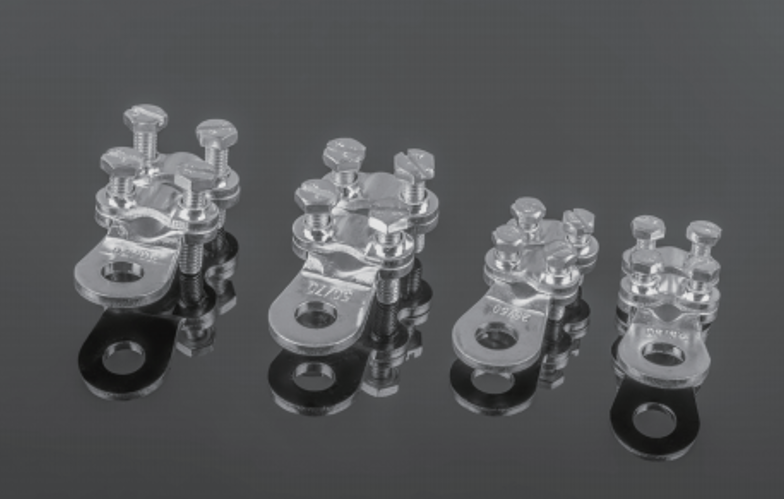

Screw Type Cable Lug
Applications
Screw Type Mechanical Cable Lugs are made of copper
sheet. They are used when soldering is not allowed
at conductors' ends. The lugs and screws are surface
protected using the process of Zinc plating. Good quality
threads guarantee high tightening force which ensures
reliable joint.
Applications
Screw Type Mechanical Cable Lugs are made of copper
sheet. They are used when soldering is not allowed
at conductors' ends. The lugs and screws are surface
protected using the process of Zinc plating. Good quality
threads guarantee high tightening force which ensures
reliable joint.
Dimensions
| Type | Cross Sections (mm) | Size (mm) | ||||||
| L | L1 | B | B1 | H | H1 | φ | ||
| WCJB-1 | 16-25 | 38 | 20 | 22 | 16 | — | 12 | 8.5 |
| WCJB-3 | 25-50 | 52.5 | 21.5 | 24.5 | 22 | 13.5 | 13.5 | 10.5 |
| WCJB-4 | 50-70 | 61.5 | 29 | 31.5 | 23 | 19 | 18.5 | 10.5 |
| WCJB-5 | 70-95 | 70 | 29 | 35.5 | 24 | 20 | 21 | 10.5 |
| WCJB-6 | 95-120 | 75 | 30 | 42 | 29 | 24.5 | 23.5 | 13.5 |
| WCJB-7 | 120-150 | 75 | 30 | 42.5 | 27 | 24 | 25 | 13.5 |
| WCJB-8 | 150-185 | 75 | 30 | 42.5 | 27.5 | 24 | 25 | 13.5 |
| WCJB-9 | 185-240 | 81 | 30 | 45 | 30 | 24 | 25 | 13.5 |
Ordering information
| Color | Standard | Siliver |
| Ordering description | Specify product type (for example, WCJB-1) |
