Silicon Rubber Tubing with Tape&Resin masitc / GCRSJ

Low voltage Cast Resin straight through Joint

Features
◎ Easy installation
◎ Excellent impact resistance

Applications
GCRSJ is designed for waterproof joints of 1kV and below low-voltage cables. It is a two-component, room-temperature curing resin that is poured on-site to fill all voids within the joint and its shell. Upon curing, it forms a monolithic, fully sealed, moisture- and water-proof insulation body, providing the most reliable protection for joints in direct burial, manholes, or other damp environments.

Key technical performances

Technical Data of PU Resin	Value	According to DIN VDE 0291
Voltage test		No breakdown
23℃	>20kV	20kV
80℃	>10kV	10kV
Dielectric dissipation factor
23℃ and 50Hz	0.08	max. 0.1
23℃ and 1kHz	0.05	-
Relative permittivity
23℃ and 50Hz	5	< 6
23℃ and 1kHz	5.1	-
Tracking resistance	KA 3c	min. KA 3c

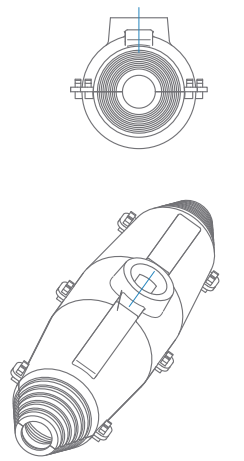

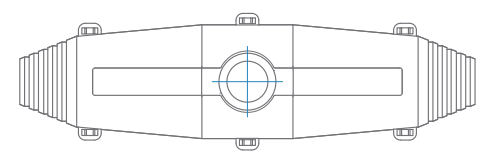

Selection Table

Part No	Cable Size mm	L(mm）	H(mm）	D1(mm）	D2(mm）
GCRSJ-S1	4 x 1.5 – 10	185	40	8	26
GCRSJ-S2	4 x 10 – 25	270	55	14	32
GCRSJ-S3	4 x 35 – 50	355	60	23	39
GCRSJ-S4	4 x 50 – 70	400	75	28	50
GCRSJ-S5	4 x 95 – 150	535	125	35	65
