Polyurethane Resin / Straight Connector / GCRSJ
Low voltage Cast Resin
straight through Joint
Features
◎ Easy installation
◎ Excellent impact resistance
straight through Joint
Features
◎ Easy installation
◎ Excellent impact resistance
Applications

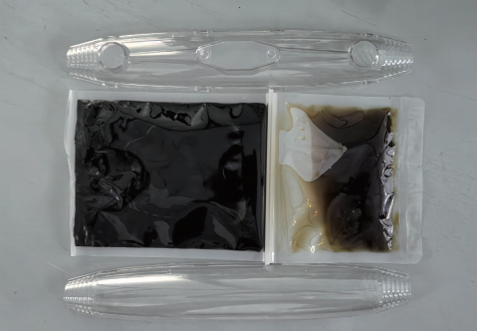

GCRSJ is designed for waterproof joints of 1kV and below low-voltage cables.
It is a two-component, room-temperature curing resin that is poured on-site to fill all voids within the
joint and its shell. Upon curing, it forms amonolithic, fully sealed, moisture- and water-proofinsulation
body, providing the most reliable protection for joints in direct burial, manholes, or other damp
environments.
Typical technical performances
|
Technical Data of PU Resin
|
Value
|
According to DIN VDE 0291
|
|
Voltage test
|
No breakdown |
|
|
23℃
|
>20kV | 20kV |
|
80℃
|
>10kV | 10kV |
| Dielectric dissipation factor | ||
| 23℃ and 50Hz | 0.08 | max. 0.1 |
| 23℃ and 1kHz | 0.05 | - |
| Relative permittivity | ||
| 23℃ and 50Hz | 5 | < 6 |
| 23℃ and 1kHz | 5.1 | - |
| Tracking resistance | KA 3c | min. KA 3c |
 |
 |
 |
Selection Table
|
Part No
|
Cable Size mm
|
L(mm）
|
D1(mm）
|
D2(mm）
|
|
GCRSJ-S1
|
4x1.5-16
|
188 |
6 |
26 |
|
GCRSJ-S2
|
4x16-25
|
258 | 16 | 34 |
|
GCRSJ-S3
|
4x35-50
|
360 | 20 | 37 |
|
GCRSJ-S4
|
4x50-95
|
400 | 25 | 40 |
|
GCRSJ-S5
|
4x120-185
|
530 | 35 | 65 |
|
GCRSJ-S6
|
4x240-400
|
700 | 45 | 80 |
*The above data is for reference only, there will be some errors, please refer to the actual sample.
Ordering information
Ordering information
| Standard packaging | |
| Ordering description | Specify product name, (for example, GCRSJ-S1) |
