Low Voltage Breakouts / GLB

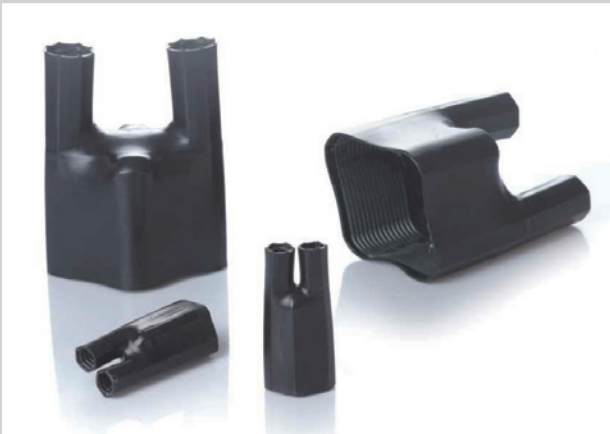

Low voltage breakout 2 to 5 cores
Features
◎ Shrink ratio 2-3:1
◎ RoHS compliant
Features
◎ Shrink ratio 2-3:1
◎ RoHS compliant
Typical technical performances
| Test Items | Test Method | Test Requirements |
| Tensile strength | ASTM D 2671 | 12MPa min. |
| Ultimate elongation | ASTM D 2671 | 200% min. |
| Volume resistivity | IEC 93 | 1014Ω.cm min. |
| Dielectric strength | IEC 60243 | 12kV/mm(10mm) min. |
| Water absorption | ISO 62 | 0.5% max. |
| Heat shock at 225℃ /4hrs | ASTM D 2671 | No cracking, dropping |
| Density | ASTM D 792 | 1.0~1.1g/cm3 |
Ordering information
| Color | Standard | Black |
| Ordering description | Specify product name, size and Color (for example, GLB3C-70/28 Black) | |
 |
 |
| HotmeltadhesiveA=50mm B=25mm | HotmeltadhesiveA=50mmB=25mm |
 |
 |
| Hot melt adhesive A=50mm B=25mm | Hot melt adhesive A=50mm B=25mm |
Dimensions
| Size (mm) | D (mm) | I (mm) | Supplied Length(mm) | Recovered length(mm) | Recovered Wall Thickness (mm) | |||||
| ±10% | ±10% | ±20% | ||||||||
| As supplied (Min.) | After Recovery (Max.) | As supplied (Min.) | After Recovery (Max.) | Total Length | Finger Length | Total Length | Finger Length | Dw | lw | |
|
|
||||||||||
| GLB2C-22/8 | 22 | 12 | 11 | 3.5 | 55 | 16 | 60 | 18 | 2.2 | 1.8 |
| GLB2C-30/12 | 30 | 14 | 14 | 4.5 | 80 | 22 | 84 | 21 | 2.6 | 2.4 |
| GLB2C40/16 | 40 | 16 | 15 | 5.0 | 100 | 30 | 110 | 30 | 2.2 | 2.2 |
| GLB2C-60/23 | 60 | 23 | 25 | 8.0 | 95 | 21 | 105 | 25 | 2.4 | 2.4 |
| GLB2C-90/60 | 90 | 60 | 30 | 8.0 | 165 | 45 | 170 | 48 | 3.0 | 3.0 |
| GLB2C-160/ 90 | 160 | 92 | 50 | 30 | 290 | 170 | 310 | 160 | 4.5 | 4.5 |

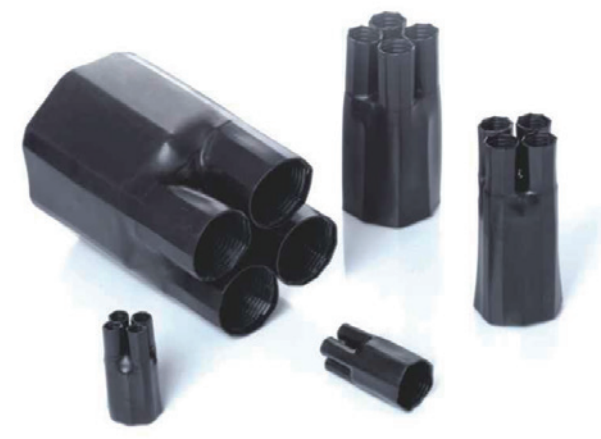

3 Cores cable breakout |
||||||||||
| GLB3C-38/16 | 38 | 16 | 15 | 5 | 100 | 35 | 110 | 30 | 2.3 | 2.0 |
| GLB3C-60/25 | 60 | 25 | 26 | 8 | 170 | 40 | 175 | 45 | 3.2 | 2.8 |
| GLB3C-70/28 | 70 | 28 | 32 | 10 | 175 | 45 | 180 | 4.5 | 3.3 |
3.0 |
| GLB3C-80/38 | 80 | 38 | 34 | 16 | 190 | 50 | 195 | 55 | 3.5 | 3.3 |
| GLB3C-110/50 | 110 | 50 | 46 | 19 | 220 | 55 | 230 | 60 | 3.8 | 3.5 |
| GLB3C-125/ 57 | 125 | 57 | 55 | 20 | 230 | 58 | 240 | 65 | 3.7 | 3.3 |
| GLB3C-140/ 70 | 140 | 70 | 62 | 26 | 250 | 58 | 270 | 68 | 3.9 | 3.6 |
| GLB3C-170/ 77 | 170 | 77 | 75 | 28 | 250 | 55 | 270 | 68 | 3.9 | 3.6 |

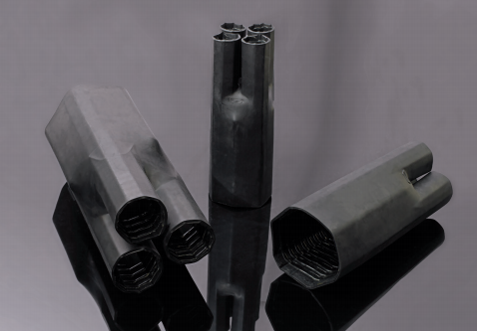

4 Cores cable breakout |
||||||||||
| GLB4C-40/15 | 40 | 15 | 12 | 5.0 | 95 | 23 | 100 | 24 | 2.2 | 2.0 |
| GLB4C-55/21 | 55 | 21 | 20 | 5.5 | 145 | 40 | 150 | 42 | 2.9 | 2.7 |
| GLB4C-65/26 | 65 | 26 | 25 | 7.5 | 170 | 45 | 180 | 50 | 3.3 | 3.1 |
| GLB4C-75/26 | 75 | 26 | 28 | 7.5 | 180 | 45 | 190 | 50 | 3.3 | 3.1 |
| GLB4C-82/37 | 82 | 37 | 30 | 1.1 | 170 | 46 | 180 | 45 | 3.3 | 3.0 |
| GLB4C-90/37 | 90 | 37 | 32 | 11 | 170 | 46 | 180 | 50 | 3.3 | 3.0 |
| GLB4C-100/47 | 100 | 47 | 38 | 12 | 180 | 55 | 190 | 55 | 3.9 | 3.3 |
| GLB4C-125/52 | 125 | 52 | 50 | 15 | 215 | 50 | 240 | 68 | 4.0 | 4.0 |
| GLB4C-160/70 | 160 | 70 | 64 | 20 | 240 | 50 | 270 | 68 | 3.8 | 3.7 |
5 Cores cable breakout |
||||||||||
| GLB5C-40/19 | 40 | 19 | 13 | 4.5 | 90 | 20 | 85 | 20 | 2.5 | 2.2 |
| GLB5C-55/24 | 55 | 24 | 18 | 5.5 | 145 | 36 | 150 | 40 | 3.0 | 2.6 |
| GLB5C-80/33 | 80 | 33 | 26 | 8 | 160 | 46 | 175 | 50 | 3.2 | 3.0 |
| GLB5C-100/42 | 100 | 42 | 35 | 10 | 185 | 52 | 195 | 55 | 3.5 | 3.2 |

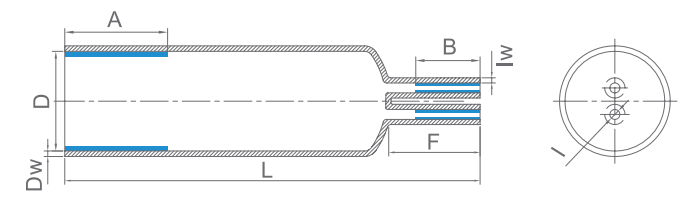

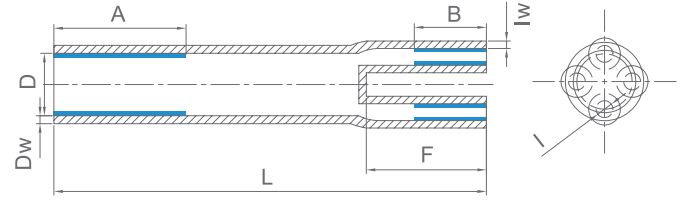

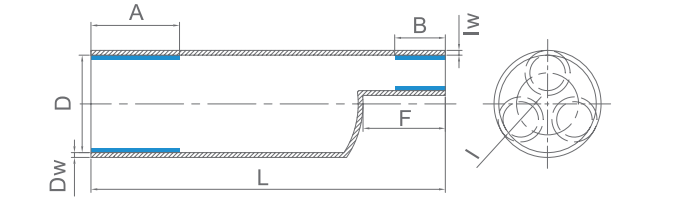

l* = The length of L as supplied
f* = The length of F as supplied
a* = Inner diameter as supplied
b* = Inner diameter after fully recovered
