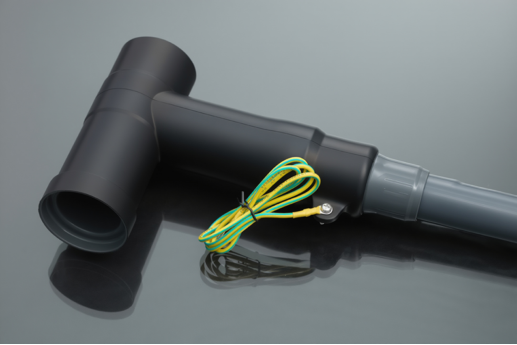

ront&Rear Connector / GSFC/GSRCF
Screen Separable Cable Connector
Features
◎ The integrated LSR geometric stress cone provides high performances for
Screened Connector, such as rugged structure, well-elasticity and reliable long-term operation.
◎ Without using any auxiliary tools, the Screened Connector can be installed vertically or horizontally, even under any angle.
◎ The Screened Connector has a compact design which is suitable for installations in narrow spaces.
◎ RoHS compliant
Features
◎ The integrated LSR geometric stress cone provides high performances for
Screened Connector, such as rugged structure, well-elasticity and reliable long-term operation.
◎ Without using any auxiliary tools, the Screened Connector can be installed vertically or horizontally, even under any angle.
◎ The Screened Connector has a compact design which is suitable for installations in narrow spaces.
◎ RoHS compliant
Key technical performances
| Standard | IEC 60502 | |||
| Voltage classes | 6/10(12)kV | 8.7/15(17.5)kV | 12/20(24)kV | 18/30(36)kV |
| Partial discharge test at ambient temperature | 10kV, <10pC | 15kV, <10pC | 20kV, <10pC | 30kV, <10pC |
| AC withstand voltage test | 27kV 5min | 39kV 5min | 54kV 5min | 81kV 5min |
| Impulse voltage withstand | ±75kV each polarity 10 times | ±95kV each polarity 10 times | ±125kV each polarity 10 times | ±170kV each polarity 10 times |
Ordering information
| Ordering description | Specify details as follows (for example, GSFC 24kV/3C 70mm2 CWS, Alu Cable) | |
| Screen Type: CWS or CTS | ||
| Armor Type: SWA or STA | ||
Selectiontable
| Screen cable Connector | Screen Rear cable Connector | Cable Insulation OD(mm) | Cable Conductor Cross-section(mm²) |
8.7/15(17.5)kV |
|||
| GSFC-17.5-630A-A | GSRC-17.5-630A-A | 14.9mm | 25mm² |
| GSFC-17.5-630A-B | GSRC-17.5-630A-B | 15.9mm-18.7mm | 35mm²-70mm² |
| GSFC-17.5-630A-C | GSRC-17.5-630A-C | 20.4mm-23.2mm | 95mm²-150mm² |
| GSFC-17.5-630A-D | GSRC-17.5-630A-D | 25mm-27.3mm | 185mm²-240mm² |
| GSFC-17.5-630A-E | GSRC-17.5-630A-E | 29.5mm-35.5mm | 300mm²-500mm² |
12/20(24)kV |
|||
| GSFC-24-630A-A | GSRC-24-630A-A | 17.9mm-19.2mm | 25mm²-50mm² |
| GSFC-24-630A-B | GSRC-24-630A-B | 20.7mm-22.4mm | 70mm²-95mm² |
| GSFC-24-630A-C | GSRC-24-630A-C | 23.9mm-27.0mm | 120mm²-300mm² |
| GSFC-24-630A-D | GSRC-24-630A-D | 29.3mm-31.5mm | 240mm²-300mm² |
| GSFC-24-630A-E | GSRC-24-630A-E | 34.3mm-37.3mm | 400mm²-500mm² |
18/30(36)kV |
|||
| GSFC-36-630A-A | GSRC-36-630A-A | 25.2mm-30.2mm | 50mm²-95mm² |
| GSFC-36-630A-B | GSRC-36-630A-B | 30.2mm-35.9mm | 120mm²-185mm² |
| GSFC-36-630A-C | GSRC-36-630A-C | 35.9mm-41.2mm | 240mm²-300mm² |
| GSFC-36-630A-D | GSRC-36-630A-D | 41.2mm-44.5mm | 400mm²-500mm² |
*NOTE:
1. Cable insulation outer diameter is one of the prerequisite for Electric power selection.
2. The connector suit for bushings according to EN 50181, connection type C.
