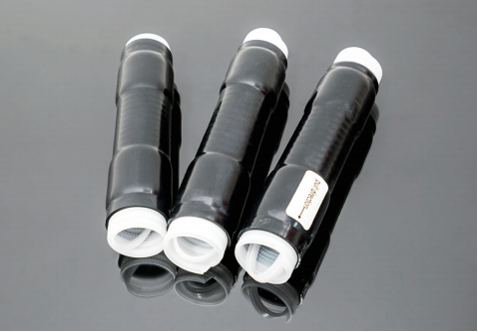

Cold Shrink Tubing / GCST-M
Cold Shrink Tubing of Silicon Rubber with Sealing Mastic
Features
◎ High Shrink Ratio
◎ Excellent tear resistance and sealing effect
◎ Waterproof, Ozone aging
Features
◎ High Shrink Ratio
◎ Excellent tear resistance and sealing effect
◎ Waterproof, Ozone aging
Key technical performances
| Test Items | Test Method | Test Requirements |
| Tensile strength | GB/T 528-2009 | 7MPa min. |
| Ultimate elongation | GB/T 528-2009 | 800% min. |
| Tear strength | GB/T 529-2009 | 30KN/m min. |
| UV Aging | GB/T 16422.3 | No crack |
| Ozone Aging | ASTM D1149-07 | No crack |
| Impulse | GB/T 1695-2005 | No crack |
| Flammability | UL 94 | VW-1 |
Selection table
| D (mm) | D-Min (mm) | D-Max (mm) | Wall Thickness after recovery (mm±0.2) |
L (mm) |
| Ф28 | 9 | 23 | 4 | 100-150 |
| Ф32 | 9 | 26 | 4 | 100-150 |
| Ф44 | 12.7 | 38 | 4 | 100-150 |
Ordering information
| Color | Standard | Grey |
| Standard packaging | In 0.10m to 0.15m | |
| Ordering description | Specify product name, size and Length (for example, GCST-M Ф28-100mm) | |
* Other sizes and lengths will be available on request
